Eaton/Moeller MFD-80
Multi-Function Display



MFD-80 Multi-function display

MFD-80-B shown
  • Operator interface module
  • Graphical display 132 x 64 pixels
  • Switch able backlight
  • Freely definable status LEDs red + green
  • Individual laser inscription via MFD combination*
  • Removable Titan front frame NEMA 4X; IP65

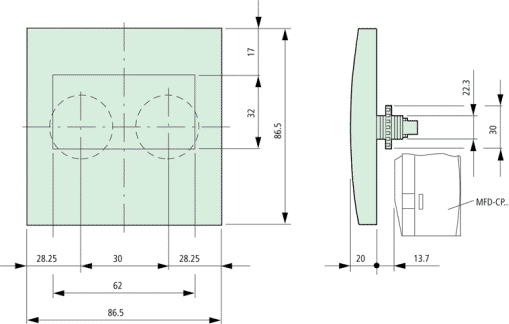

MFD-80 Dimensions

MFD-80 Dimensions

Inch to MM Conversion

Convert to MM

MM to Inch Conversion

Convert to Inches
Return to MFD Summary


MFD-Titan multifunction display user manual
(06/04 AWB2528-1480GB).
User Manual – MFD-Titan (English) (3.4MB)

View MFD Manual
