Eaton Moeller SL-100-L-RYG/230, 230V AC/DC Red/Yellow/Green Complete Stacklight
Menu

Eaton Moeller
SL-100-L-RYG/230
230V AC/DC Red/Yellow/Green
Complete Stacklight

SL4-L-A

Complete Device


Voltage = 24 Vac/Vdc

Part Number = SL-100-L-RYG-24

Color = Red, Yellow & Green

Features

Stacklight Technical Information

General

Standards  IEC/EN 60947
Degree of protection, IEC/EN 60529  IP65 with SL-IP65 gasket;
IP20 with SL-A acoustic indicator
module
Climatic proofing  Damp heat, constant, to IEC
60068-2-78; Damp heat, cyclical,
to IEC 60068-2-30
Ambient temperature
Enclosed [°C]
- 25 / 50
Mounting position  As required
Mechanical shock resistance according to
IEC 60068-2-27
Shock duration 11 ms, half-sinusoidal [g]
> 15
Terminal Capacity
Solid [mm2]
Stranded [mm2]

0.75 – 2.5
0.5 – 2.5

Contacts

Rated impulse withstand voltage   Uimp  [V AC] 4000
Rated insulation voltage   Ui   [V] 250
Overvoltage category / pollution degree  III / 3

ASI Base Module

General

Connection of the AS interface line Screw terminal on the
circuit board
Addressing Through AS interface
line connection
Maximum total current   [mA] ≤ 250
Power supply From AS interface line only
Ambient temperature   [°C] -25 / 55
Status LEDs on the circuit board Status. Output Q0/function module
position 1: green
Status. Output Q1/function module
position 2: green
Status. Output Q2/function module
position 3: green
AS interface power line: green
AS interface error, AS interface master
failure: red
Profile
S-9.A.E

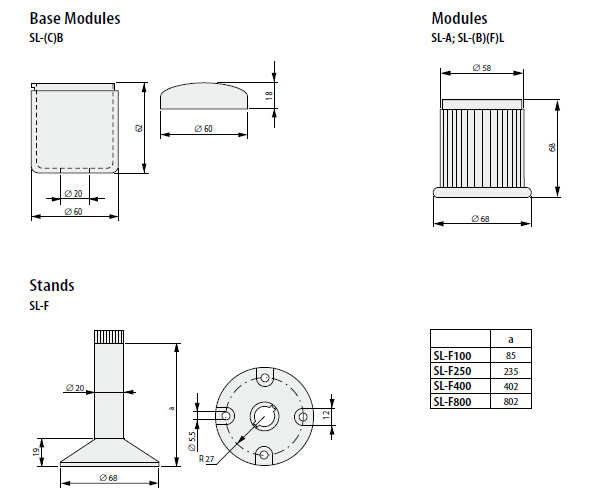

Stacklight Dimensions
